CM710-4 UHF RFID module

Making it Faster to Read Multi-tags
Chainway CM710-4 is a 4-port UHF RFID reader module that can be used in mobile or fixed UHF RFID readers, integrated RFID readers, etc. This module with superior UHF RFID performance boasts embedded Impinj E710 RFID chip to enable greater than 10m read range. With high stability, it is small in size, low in power consumption, resistant to electromagnetic interference and good at heat dispersion. CM710-4 appeals to warehousing, logistics, apparel, production lines and such.
Inquiry
 *
 *
Fields marked with asterisk (*) are mandatory.
View in the e-shop
CM2000-4 UHF RFID
CM2000-4 UHF RFID
CM2000-4 UHF RFID
CM2000-4 UHF RFID
CM2000-4 UHF RFID

Making it Faster to Read Multi-tags

Features
ico_02
Impinj E710
ico_22
Excellent Reading Performance
ico_17
Strong Stability
ico_21
Heat Dispersion
ico_03
Low Power Consumption
ico-03
Fast 4 Antenna Switch Inventory
Functions
ico_13
UHF RFID

CM710-4 UHF RFID Modul

Perfect Performance Despite of Conditions

CM710-4 is a Chainway self-developed 4-port UHF RFID module. It can be easily embedded into mobile readers, fixed readers, labelers, printers, etc. This small-size module performs perfectly well under a wide range of temperatures; its superior UHF RFID read/write capabilities do not affected by electromagnetic interference; it minimizes heat and consumes low power to deliver stable performance. CM710-4 can be widely applied in RFID application such as warehousing, logistics, apparel, retail, and industrial production process control systems.


CM710-4 RFID



CM4_02

1

Fast Pooling, 4 Antenna Ports

  • The fastest polling rate of each antenna reaches 25ms.
  • Different polling rates can be applied to different antennas.
  • 4 antenna ports provides a wider reading range
CM4_03

2

Best-in-class RF Chip

It employs Impinj E710 UHF RFID RF chip, which promises highly precise UHF RFID read/write in wide range and low-phase noise.

CM4_04

3

Powerful Data Capture Ability

  • Read tags with high stability and sensitivity Resistant to electromagnetic interference.
  • Support long-distance reading. The read range is 10 meters when using a 4dBi antenna
  • Ideal for high volume applications. The reading rate reaches over 400 tags per second with high accuracy.
CM4_05

4

Professional Temperature Controlling

  • The internal heat sink made of heat sensitive material delivers high heat conduction rate.
  • Enough ground plane heatsinking needs no external cooling sensors.
  • Built-in chip monitors the module temperature for the protection of the system.
CM2000-4_04

5

Stable Performance Monitoring Capability

  • Work continuously 24x365. Intelligently detect CPU running status
  • Check antenna connection. Can close the receiver by command for security and protection.
  • Highly resistant to electromagnetic interference.
  • The integrated RF chip lets the module perform more stable.

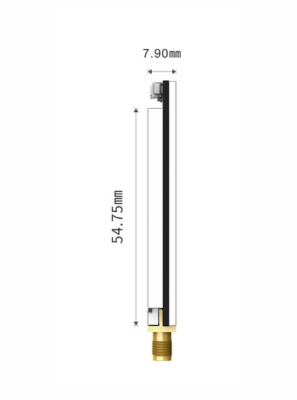

Dimensions
