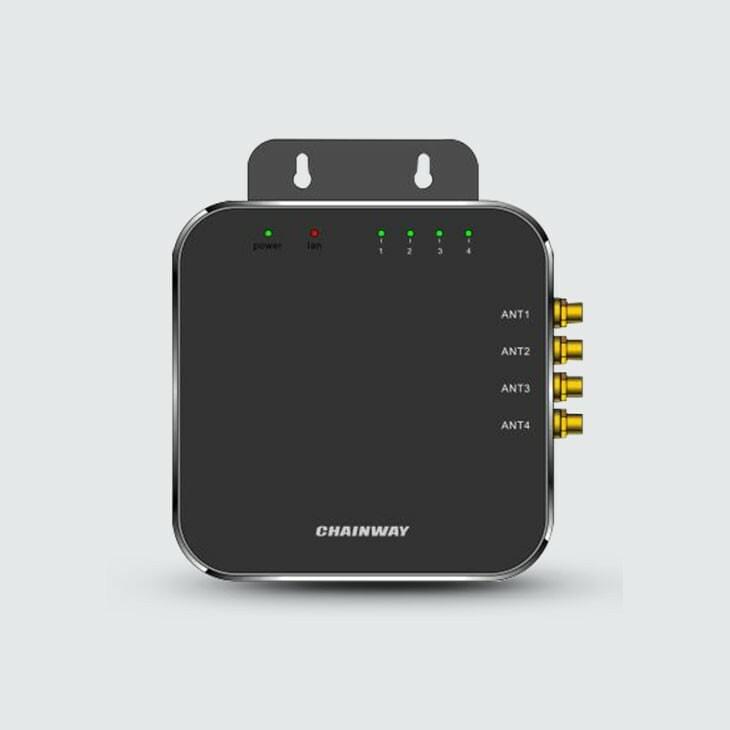

UR4 fixed UHF Reader

Outstanding UHF RFID Performance

Chainway UR4 is a self-developed four-port fixed UHF RFID reader, configured with Impinj E710 RFID chip. It supports RS232 and RJ45, and can be compatible with various types of antennas. It is resistant to electromagnetic interference and good at heat dispersion. With high integration level and stable capacity, the RFID reader can be deployed in complex environments, such as warehousing, archives and library management, banking, shoes and apparel, jewelry, watch, laundry, production line, medical equipment cabinets, vending machine.

UR4 čtecí UHF modul

UR4 čtecí UHF modul

UR4 čtecí UHF modul

UR4 čtecí UHF modul

UR4 čtecí UHF modul

Stable and Reliable Capacity

Features

ico_42

Stylish Design

ico_02

Impinj E710 Chip

ico_25

DC 12V Power Supply

ico_44

Supports RS232/RJ45

ico_03

Compatible with Various Types of Antennas

Functions

ico_46

Clothing and Footwear Retail

ico_45

Jewelry Monitoring

ico_40

Vending Machines

ico_29

Intelligent Manufacture

ico_47

Archives and Library Management

ico_32

Inventory Management

Specifications

Physical Characteristics

Dimensions

102.8mm(L) x 102.8mm(W) x 28mm(H)

Weight

329g/11.6oz(without antenna)

Material

Aluminium alloy

Input Voltage

DC 9V – 12V

Standby current

<30mA

Operating current

800mA +/-5% @ DC 12V Input

Communication interface

RS-232 / RJ45

GPIO

2 channel input optical coupling, 1 channel output electric relay, 1 channel output optical coupling (in reserve)

Baud rate

115200 bps

Cooling

Air cooling

User Environment

Operating Temperature

-25 °C až 65 °C

Storage temperature

-40 °C až 85 °C

Humidity

10%- 95%

UHF RFID

Engine

CM710-4 module based on Impinj E710

Frequency

865-868MHz/920-925MHz/902-928MHz

Protocol

EPC C1 GEN2 / ISO18000-6C

Antenna

Supporting a variety of antennas, such as 6dBic, 9dBic

Reading Rate

>700 tags/s

Output power accuracy

+/- 1dB

Output Power Flatness

+/- 0.2dB

Receive Sensitivity

<-88dBm

RSSI

Supported

Ambient Temp Monitor

Supported

Antenna detector

Supported

Antenna port

4 channel 50Ω SMA port

Output Power

1W (30dBm, support +5~+30dBm adjustable)
2W Optional (33dBm, for Lati America, etc.)

Power Supply

Input Voltage

DC 9V – 12V

UHFAPP_v1.2.6 for Windows
