P80 Optical Fingerprint Tablet

8' Screen & 8000mAh Battery, Abundant Functions Available
This is an Android 9 rugged tablet with abundant functions . With its powerful Qualcomm CPU, 3rd generation corning gorilla 8 inch corning high-definition screen, 8000 mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, HF RFID/NFC, Iris and fingerprint recognition, etc. You can find this easy-to-deploy device a valuable helper to increase productivity in retail, logistics, warehousing, identity verification, meter reading, etc.
Inquiry
 *
 *
Fields marked with asterisk (*) are mandatory.
P80 tablet s optickým snímačem otisků
P80 tablet s optickým snímačem otisků

8' Screen & 8000mAh Battery, Abundant Functions Available

Features
ico_02
High Performance CPU
ico_06
8000mAh Powerful Battery
ico_17
IP65 Sealing
ico_10
4G / WiFi / Bluetooth
Functions
ico_14
Fingerprint Scanning (Optional)
ico_05
Barcode Scanning (Optional)
ico_08
NFC
ico_38
8/13 MP Autofocus Camera
ico_13
UHF RFID (Optional)
ico_26
PSAM (Optional)

Chainway P80

P80 Industrial Tablet

8" screen & 8000mAh Battery, Abundant Functions Available
P80_8
P80_scr
P80_sett
P80_batt

Unlimited Visual Experience

8-inch Large Display, Allow a Glance of the Whole Picture

P80 deploys the latest IPS technology in its large display with full HD 1920x1200. It perfectly presents all significant information without zoom-in or drag-and-drop, and you can easily get a full view of data at a glance.

Always Durable Indoors or Outdoors


Damage and scratch resistant, Corning Gorilla Glass provides an extra layer of protection to P80. Its capacitive touch panel supports operations with multi-Touch, wet fingers or gloved hands. A wide range of industrial use is permitted.

Abundant Data Collection Functions

Full Range of Functions, Meet All Your Needs

Accurate Barcode Scanning

P80 adopts state-of-art Zebra scan engine including that of Zebra, which enables lightning-fast capture of 1D/2D barcodes, even those dirty, damaged and poorly-printed codes. Its wide scan range and scan distance bestow flexibility in various applications. Whether items at hand or farther rack, you will get satisfying results with a quick sweep.
1D_noc
1D Barcode scanning
2D_noc
2D Barcode scanning

Superior UHF RFID Reading and Writing




P80 deploys Chainway self-developed UHF RFID module CM, which delivers excellent RFID reading and writing capabilities. Supporting protocols of EPC C1 GEN2 / ISO18000-6C and various frequency bands, P80 can read all kinds of RFID tags with high accuracy and speed in asset management, toll road, warehousing, finance, etc.

NFC Enabled


P80 supports ISO/IEC 18092 and ISO/IEC 21481 protocols for near-field communication and data transmission. Its high security, fast and stable connectivity, and low power consumption meet the needs in user authentication and e-payment.

Fingerprint Recognition

Optical/Capacitive (TCS2,TCS1) Fingerprint Sensor

P80, equipped with a superior fingerprint sensor, can collect and verify fingerprint with high security. It captures high-quality fingerprint images, even operated with wet fingers or in strong light.

Enhanced PSAM Security Level


Optional PSAM card slots are allowed that supports the protocol of ISO7816 and various secure access modes and authorizations. It provides higher security and cryptography performance to meet demanding applications.

Long-distance Infrared Meter Reading


P80 can be integrated with IR meter reading module to collect automatically consumption, diagnostic, and status data from water or energy metering devices (gas, electric), even from a distance.

Iris Recognition


P80 features a high-end iris scanner with a remarkably low false acceptance rate (FAR) of 1 in 10 million. It makes the device very useful in applications which require high-levels of safety against identity fraud.

High-Definition Camera


P80 boasts a 13MP autofocus color camera with flash. You can easily capture photos and videos in various modes, even under low light and back-lit conditions.

Performance

Smooth Operation in Intensive Application

RFID_noc
1D_noc
2D_noc
fingerprint_noc
iris_noc
NFS_noc

Wireless Connectivity

Stay Connected with Speed and Ease

With a variety of options including ultra-fast 4G LTE, dual-band WIFI (2.4G+5G) and low-consumption Bluetooth, P80 will offer you high-speed and stable wireless connectivity anywhere anytime.

Battery

Long-lasting Performance 8000mAh rechargeable Li-ion battery lets you fulfill a whole day´s work easily. It also supports flash charging. Now you do not have to worry that your business would be interrupted by power off anymore.

Industrial-grade Design

shield_IP
IP65
shield_drop
Drop Proof
shield_heat
Durable

High Ruggedness and Durability

IP_blk


IP65 Rating Water & Dust Proof

P80 meets IEC sealing specification. It withstands exposure to dust and splashing liquids.

Survive Falls from up to 1.5 Meters

Drop_blk

Survive Falls from up to 1.5 Meters
P80 withstands drops onto concrete from up to 1.5 meters under normal operating temperatures. It keeps reliable operations after 1000 1.6ft/0.5m consecutive tumbles.

Operating Temperature: -20°C to 50°C

Despite Heat and Cold

P80 functions effectively in extreme heat and bitter cold (-20°C to 50°C). You can expect its reliable performance in all industrial environments, whether indoor or outdoor.

Wide Industrial Applications

Thanks to its abundant data collection functions and superior rugged performance, P80 can be widely deployed in retail, warehousing, identity verification, meter reading, etc.
Specifications
Physical Characteristics
Dimensions
250.8mm x 152mm x 15mm / 9.87 x 5.98 x 0.59in ( for standard version )
Weight
700g / 24.7oz (standardní verze)
Display
8' IPS LTPS 1920x1200
Touch panel
Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Additional slots
1 slot for micro SIM card, 1 slot for micro SIM/TF card, 2 optional slots for PSAM cards ( ISO7816 T=0, T=1 protocol )
Interface
USB 3.0 Type-C, OTG
Keys
1 front key, 1 volume key, 1 power key, direction key (optional)
Sensors
Gravity sensor
Audio
Speaker, microphone
Power Supply
Main battery: Li-ion, rechargeable, 8000mAh
Standby: over 500 hours
Continuous use: over 10 hours ( depending on user environment )
Charging time: 5-7 hours ( with standard AC adapter and USB cable )
User Environment
Operating Temperature
-4°F to 122°F / -20°C to 50°C
Storage temperature
-40°F to 158°F / -40°C to 70°C
Humidity
5%RH - 95%RH non condensing
Shock resistance
Multiple 1.5m/4.9ft drops (at least 20 times) to the concrete across the operating temperature range

1000 x 0.5m/1.64ft falls at room temperature
Sealing
IP65 per IEC sealing specifications
ESD
±15KV air discharge, ±6KV conductive discharge
Developing Environment
Operating system
Android 9.0; Soti MobiControl, SafeUEM supported
SDK
Chainway Software Development Kit
Performance
CPU
SDM450 1.8GHz Octa-core
RAM + int. memory
3GB+32GB
Storage
Supports up to 128 GB Micro SD card
Communication
WLAN
IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN (Other)
V závislosti na ISP dané země
WWAN
2G: 850/900/1800/1900MHz, GPRS, EDGE
3G: CDMA EVDO:BC0
TD-SCDMA: B34/B39
WCDMA: B1/B2/B5/B8
4G: TDD-LTE: B38/B39/B40/B41
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28
Bluetooth
Bluetooth 4.2/4.1+HS/4.0/3.0+HS/2.1+EDR
GNSS
GPS/AGPS, GLONASS, BeiDou; internal antenna
Barcode Scanning
1D Symbology
UPC/EAN, Code128, Code39, Code93, Code11, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, MSI, RSS, etc.
2D Imager Scanner
Zebra SE4710 ( standard ) , Zebra SE4850 ( optional )
2D Symbology
PDF417, MicroPDF417, Composite, RSS, TLC- 39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc..
NFC
Frequency
13.56MHz
Protocol
ISO/IEC 19794-6,GB/T 20979-2007
PSAM
Slots
2 PSAM card slot
Note
*This function is optional
Camera
Front camera
8MP
Rear camera
13MP Autofocus, blesk
Fingerprint
Sensor
TCS1/TCS2 Capacitive; Optical Morpho CBM-E3
Scanning area (mm)
12.8×18; 10.4x14.4; 14x22
Resolution (dpi)
508 dpi, 8-bit greylevel; 500 dpi, 256 greylevel
Certificates
FIPS 201, STQC; FIPS PIV IQS / ISO 19794-4, MINEX & FIPS 201 complaint, STQC
Format
ISO 19794, WSQ, ANSI 378, JPEG2000; ISO 19794-2/4, WSQ, ANSI 378, etc.
Security
AES, DES key encryption of the host communication channel; FIPS 140-2 level 2, multiple security methods available, including image and templates encryption, template signature, secure tunneling, etc.
False Finger Detection
Support by SDK; Latex, Gelatin, Plasticine, Kapton, Transparent Film, Silicone, Rubber, Play-doh, Graphite Or Paper
Scan engine
Zebra SE4710 (standardně), Zebra SE4850 (volitelně)
Note
*This function is optional
Infrared
Wavelength
940nm
Download
Documents & Manuals
Software
Certificates

Not finding what you're looking for?

If you cannot find what you are looking for, please contact us.
Accessories
Wristband

Wristband

P80-HS

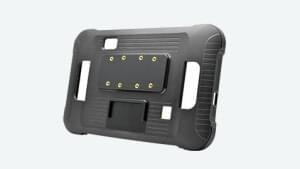

Rugged Rubber Boot

Rugged Rubber Boot

P80-RB
Charging Cradle for Device

Charging Cradle for Device

P80-CRDRB
Protective glass

Protective glass

P80-SP
